Model

GP-P650SS

Type

Intel Form Factor ATX 12V v3.0

PFC

Active PFC (>0.9 typical)

Input Voltage

155-240 Vac

Input Current

6.3A

Input Frequency

50-60 Hz

Output Capacity

650W

Dimension

150 x 140 x 86 mm

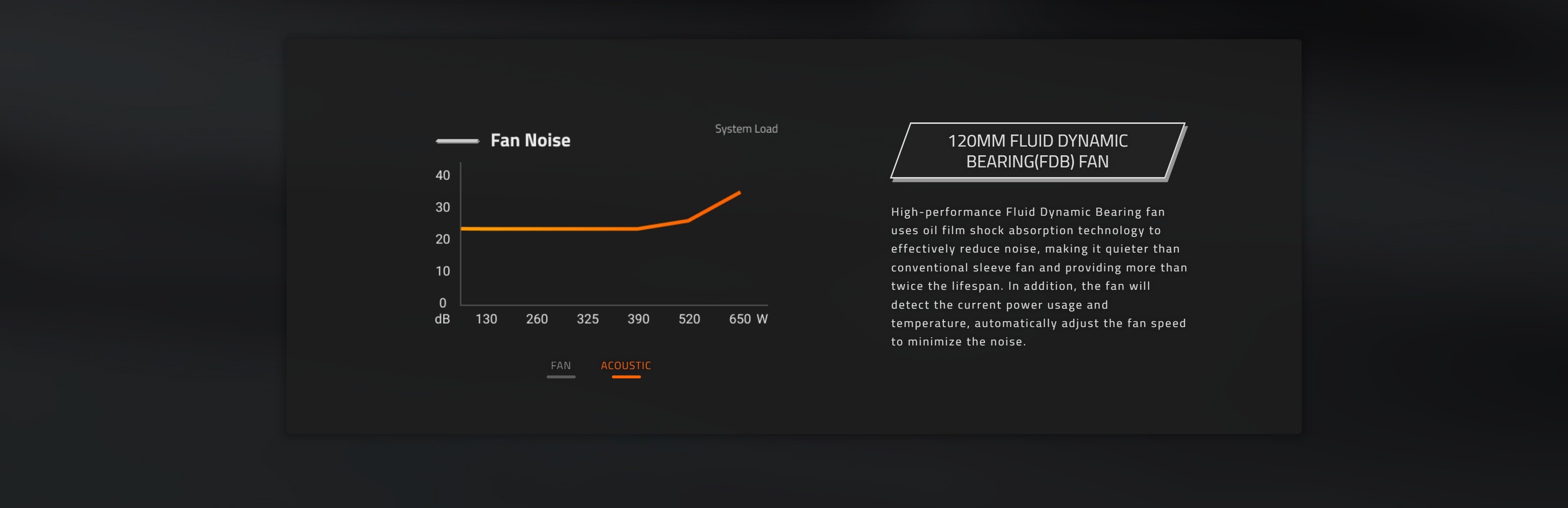

Fan Type

120mm Fluid Dynamic Bearing (FDB) fan

80 PLUS

Silver

Efficiency

90% at typical load (230V EU)

MTBF

>100,000 hours

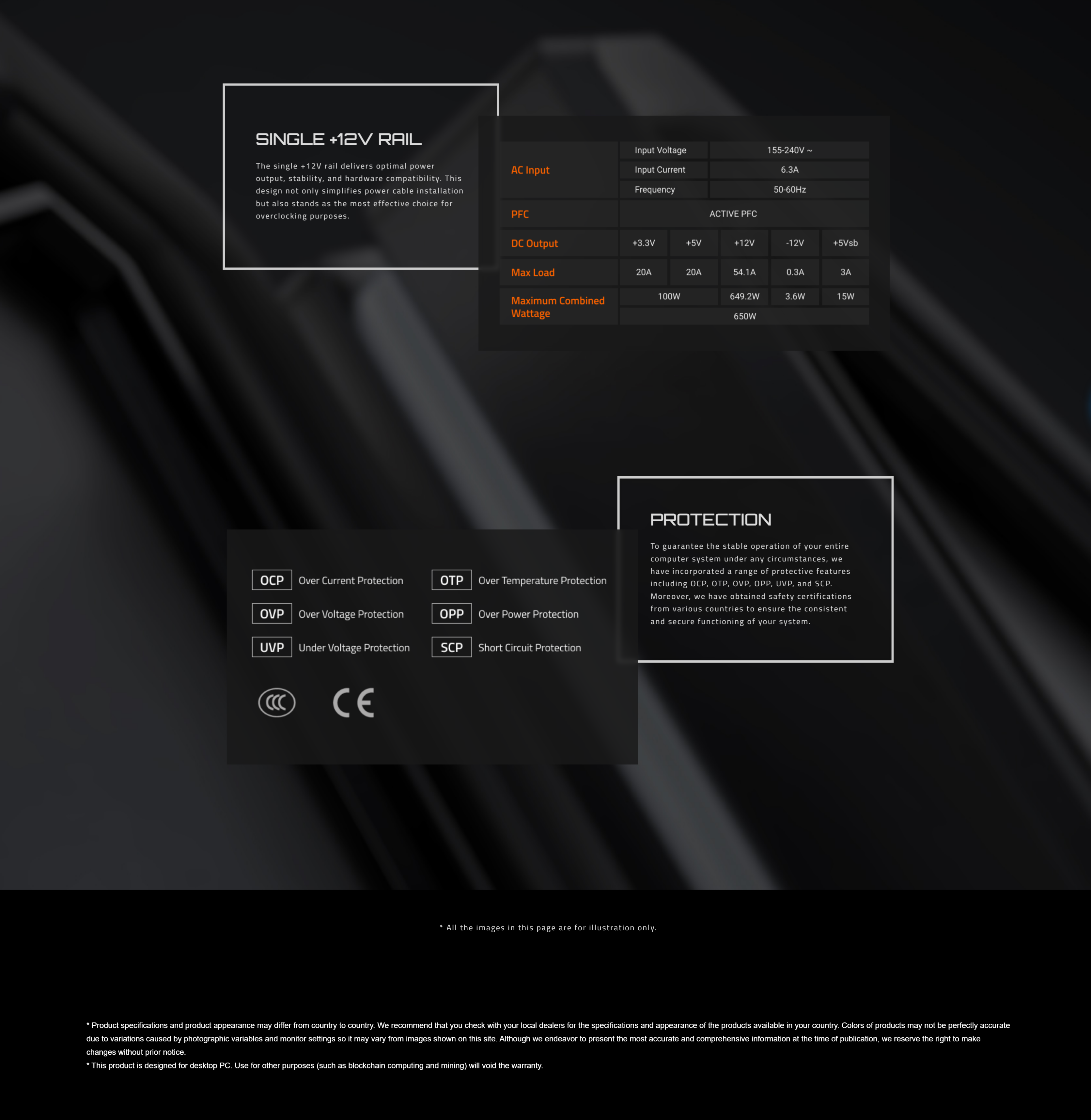

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Flat, All black

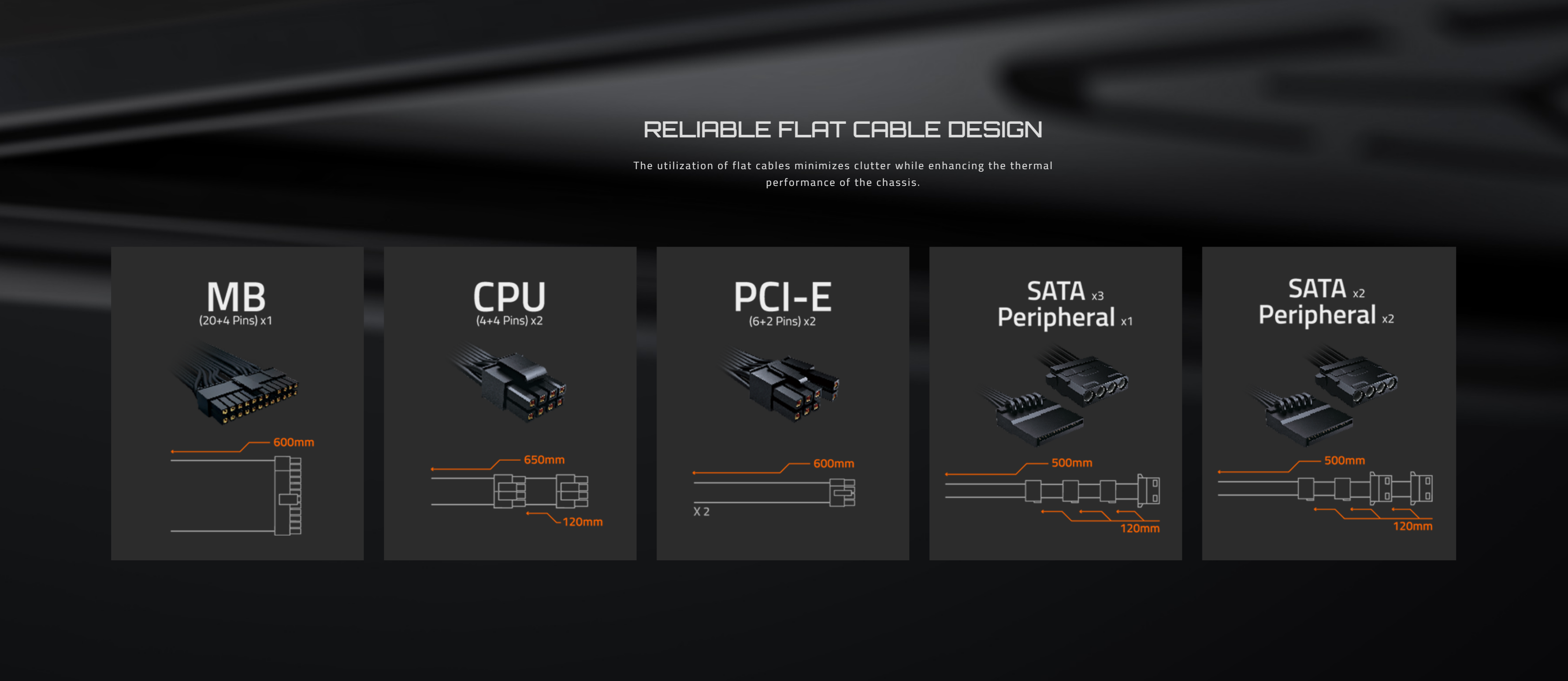

Connectors

ATX/MB 20+4 Pin x 1 : 600mm*1

CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1

PCI-e 6+2 Pin x 2 : 600mm*2

SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1

SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
